Turing M256 Uncooled Infrared Module (Temperature Measurement)

Turing M256 Uncooled Infrared Module (Imaging)

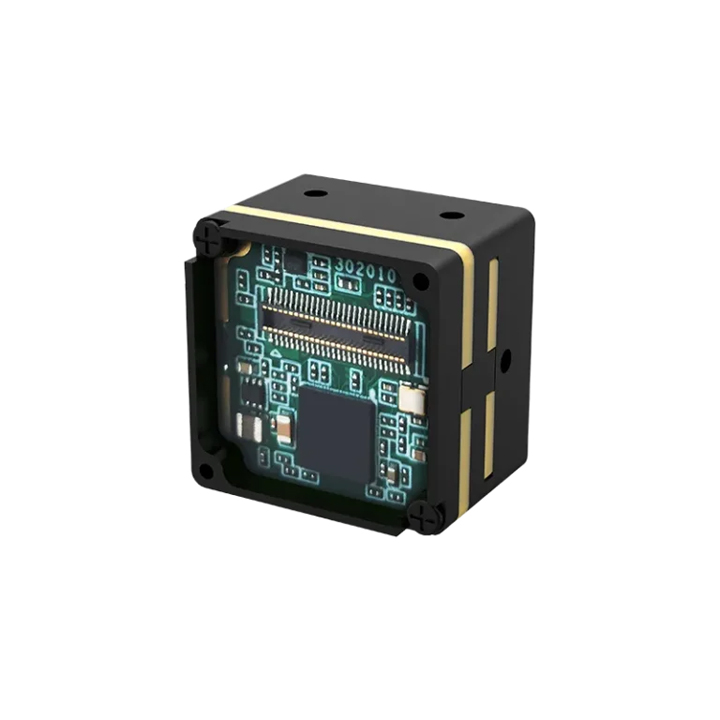

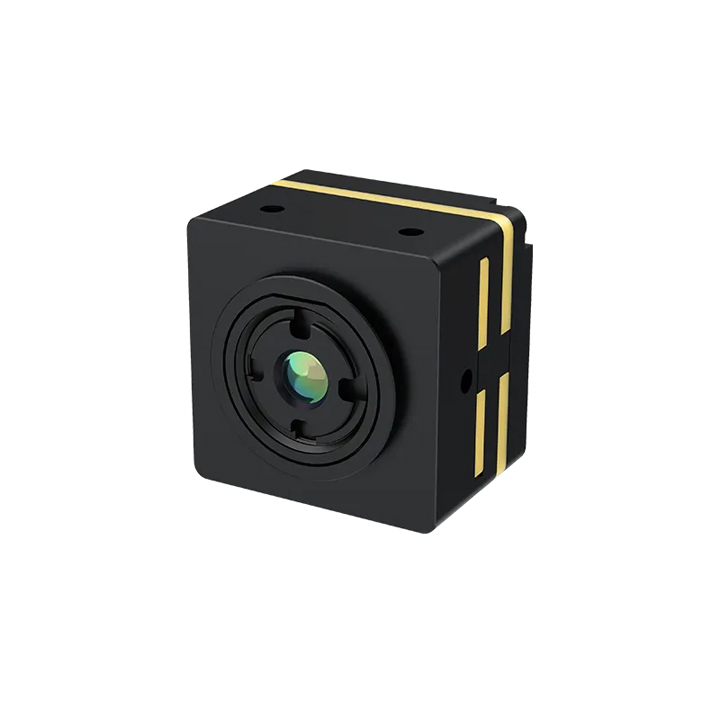

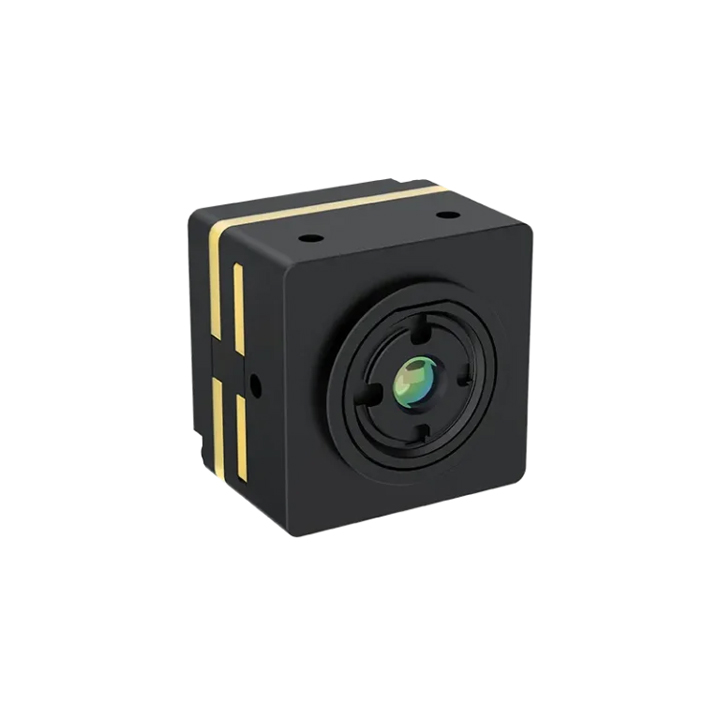

The Turing M256 uncooled infrared module has a state-of-the-art 256×192 wafer detector that measures 18×18 mm. Its integrated architecture allows it to provide exceptional miniaturized solutions for consumer devices while redefining weight, dimension, and power consumption (SWaP2) norms in the OEM module sector.

Categories: ,
Description

Feature

1. Seamless Mechanical Integration

  • Standardized form factor: 18×18mm compact design
  • 256×192 resolution matching L384 mechanical interface specifications
  • Plug-and-play compatibility with existing L384 system architectures

2. High-Performance Imaging

  • 50Hz refresh rate for fluid, real-time visualization
  • Low-latency processing (<20ms)
  • Adaptive image optimization for various environmental conditions

3. Flexible Configuration Options

  • Adjustable FOV range (20°-90°) for diverse application needs:
    • 90° wide-angle for situational awareness
    • 20° narrow-FOV for detailed inspection
  • Multi-interface support:
    • Digital: USB 2.0 (480Mbps), DVP (8-bit)
    • Analog: Composite video output
    • Optional: SPI/I²C control interfaces

4. Enhanced Operational Features

  • Low power consumption (<1.5W typical)
  • Wide operating temperature (-20°C to +60°C)
  • Compact weight: <15g (module only)

Specification

Performance Indicators
Detector Type Uncooled VOx infrared detector
Resolution 256×192
Frame Rate 50Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK@25°C
Image Adjustment
Brightness/Contrast Adjustment Manual/Auto
Polarity Black-hot/White-hot
Palette It supports multiple types
Reticle Display/Blank/Move
Image Processing Digital filtering noise reduction/Digital detail enhancement
Mirroring Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical) 3.8~5.2V DC/1.8V/3.3V
Typical Power Consumption at 25°C Without Extension ≤0.35W
Interface
Digital Video LVCMOS/BT.1120
Serial Communication Interface UART
Extension Components USB 2.0 / Analog video
Physical Characteristics

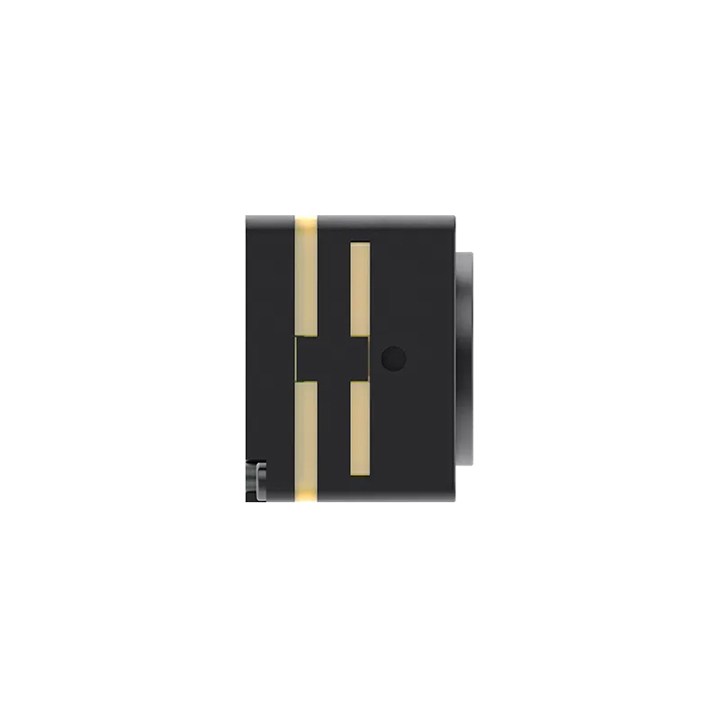

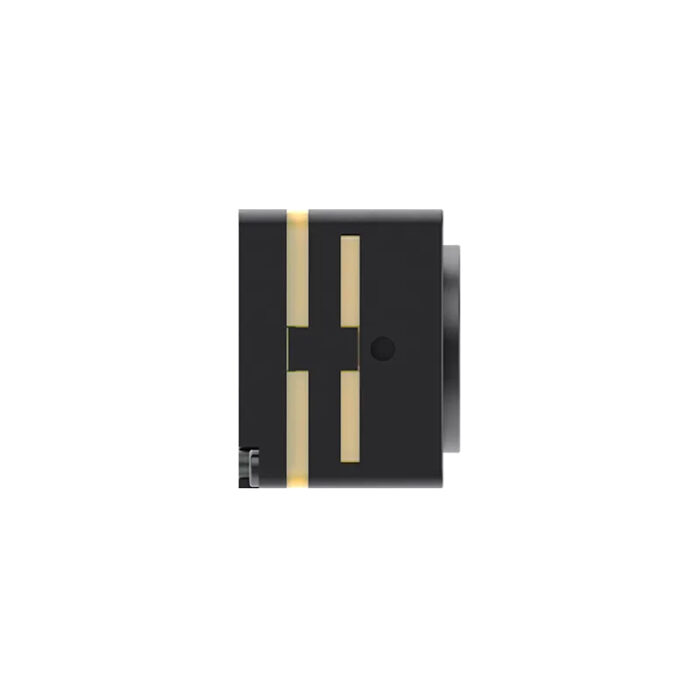

Dimensions (Without lens and extension components) 18×18mm
Weight (3.2mm, without extension components) About 8.7g
Lens Model 2mm, 3.2mm, 7mm, 10mm, and 13mm
Environment Adaptability
Operating Temperature -20℃～60℃
Storage Temperature -45℃～+85℃
Humidity 5 ~ 95%, non-condensing
Product Certification RoHS2.0

Application Scenarios

  • UAV
  • Security Monitoring
  • Head-Mounted Night Vision
  • Machine Vision
