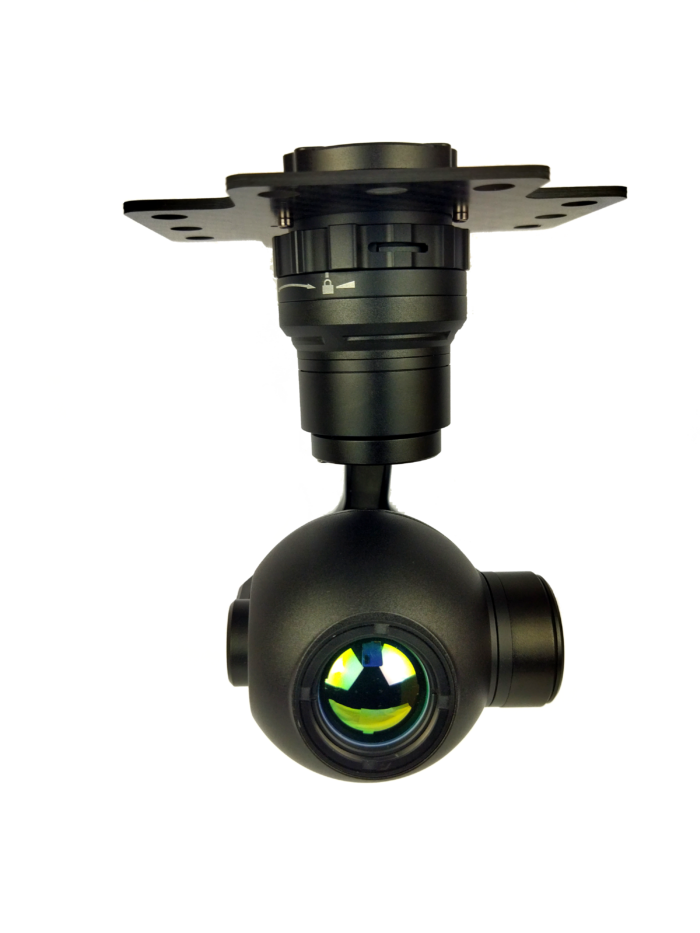

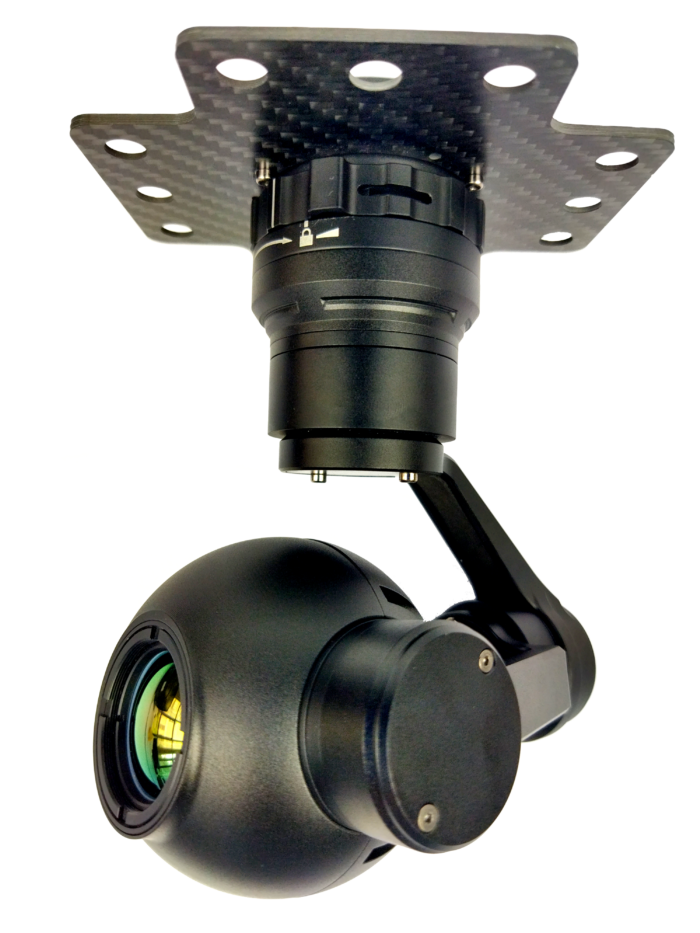

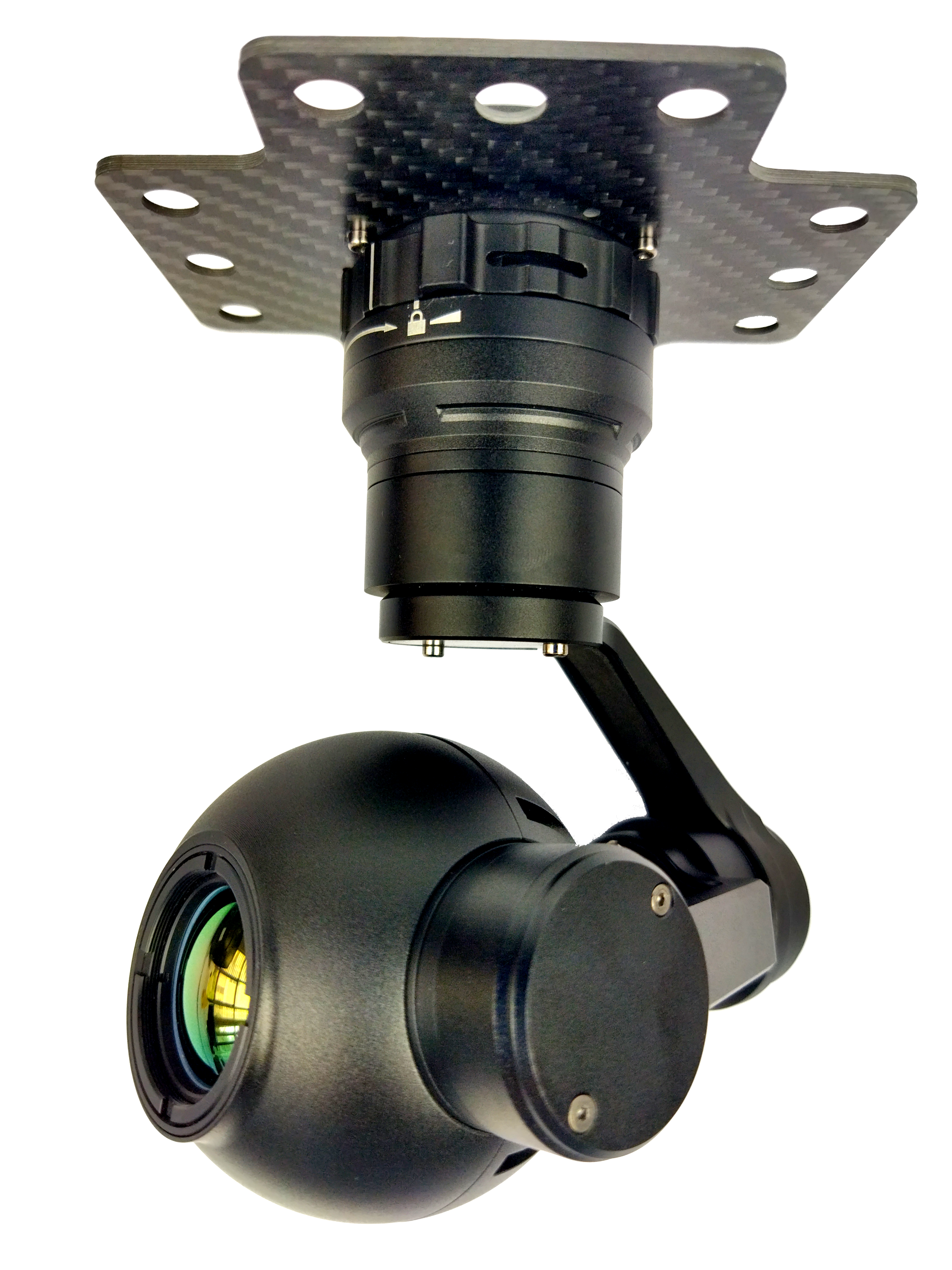

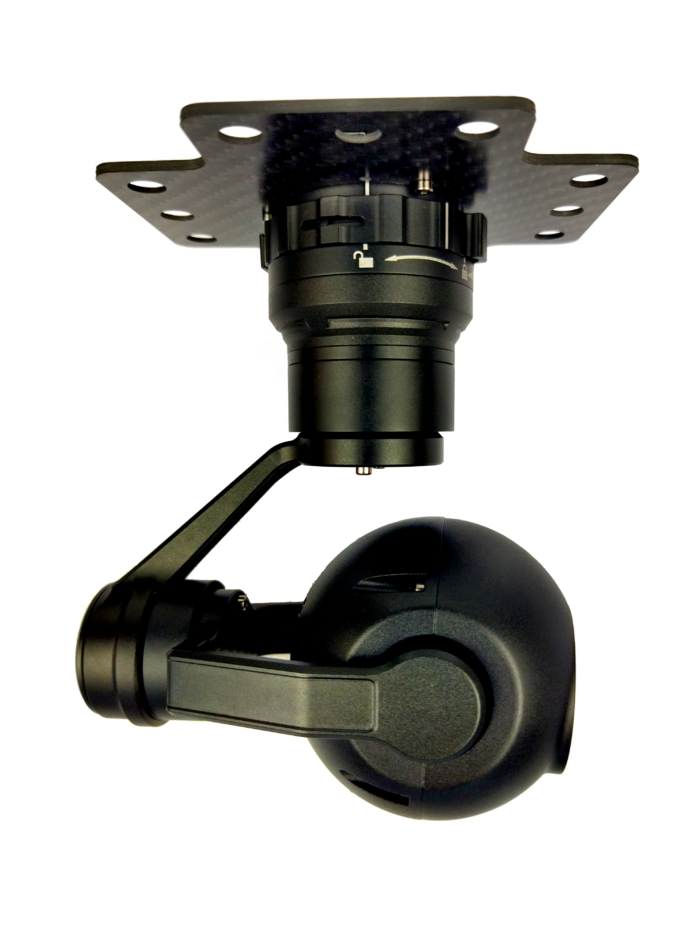

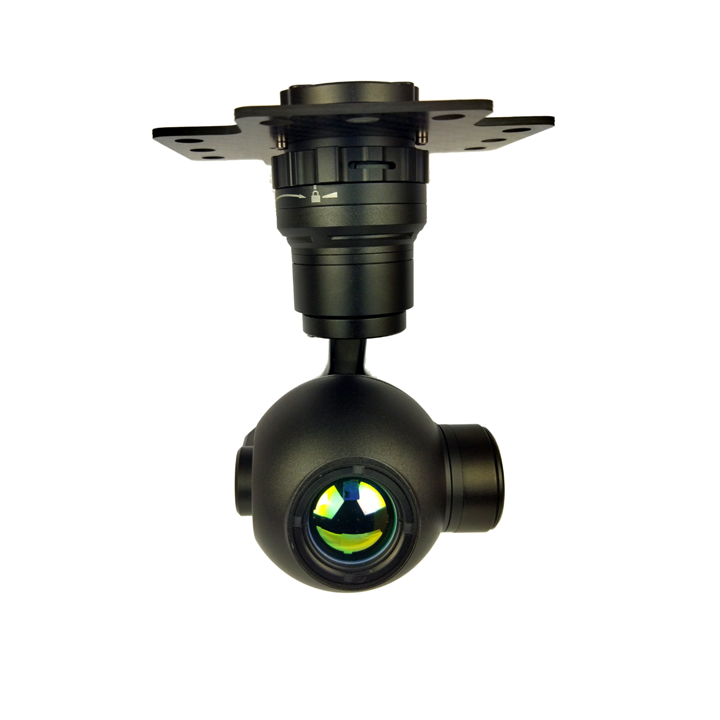

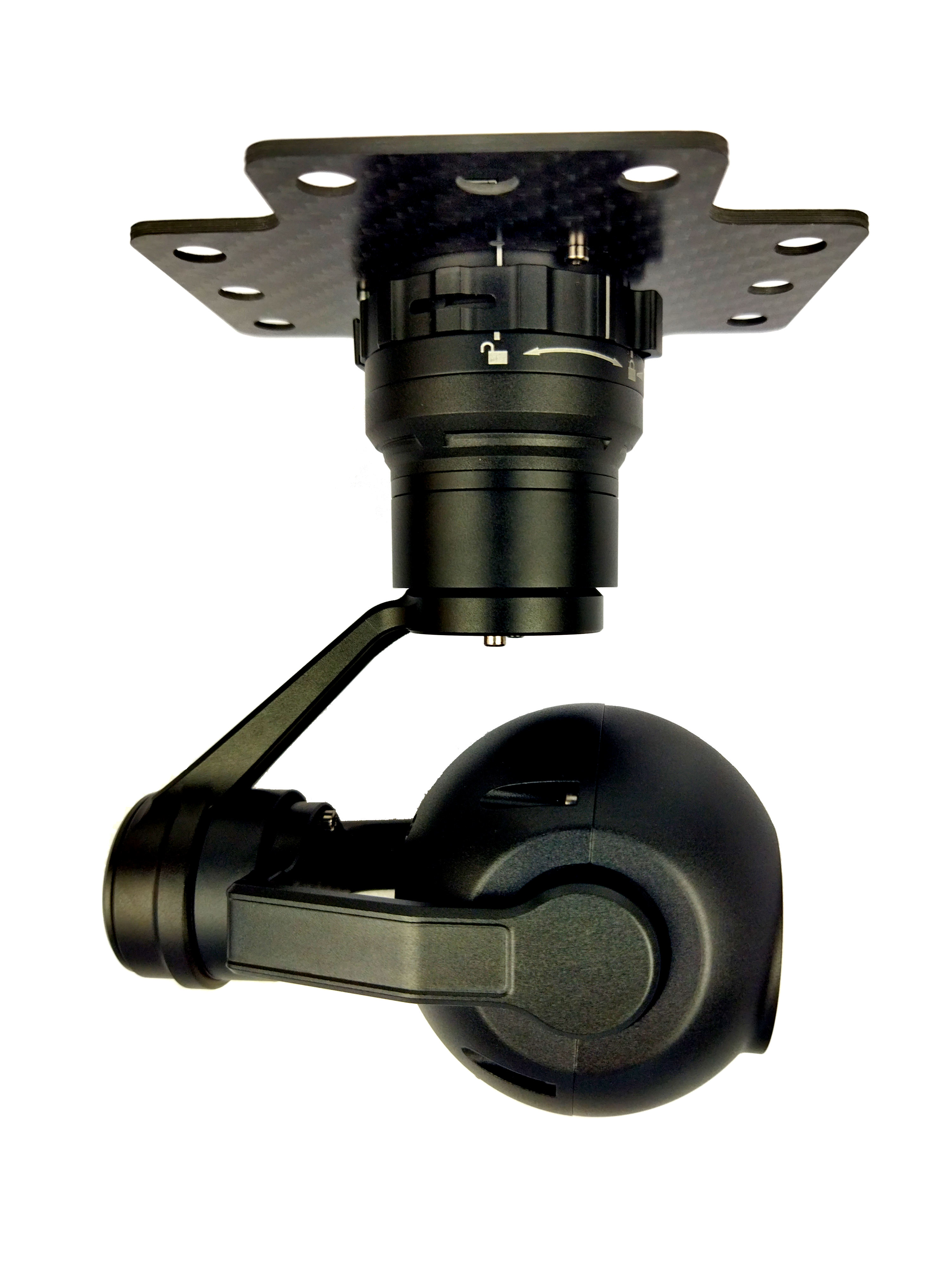

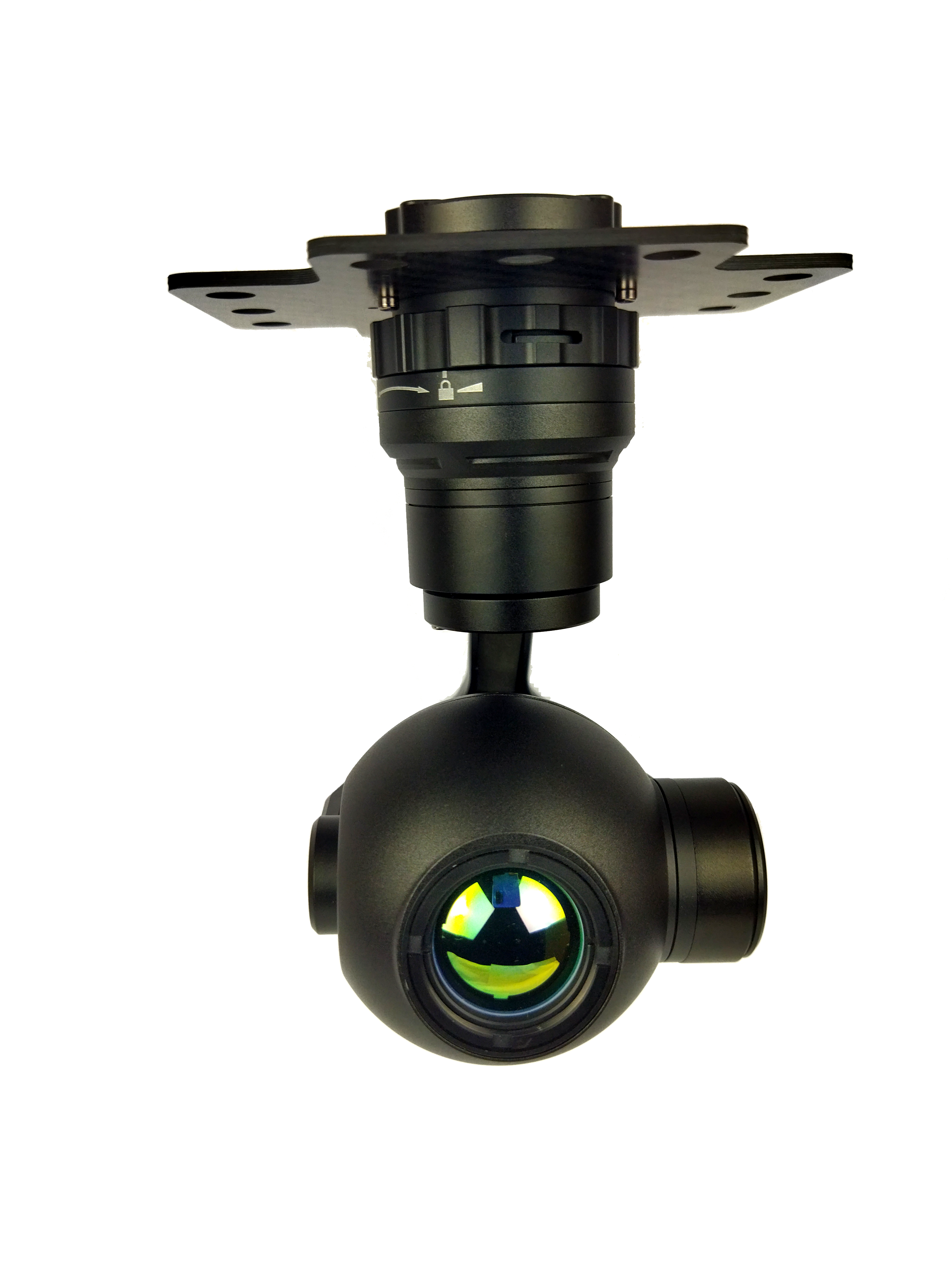

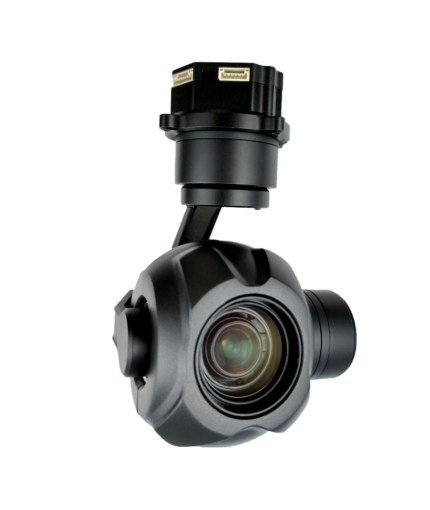

China Moneypro MG640G25 is a single thermal imaging IP output gimbal camera, which adopts a 25mm focal length, 640×512 pixels resolution infrared thermal camera with 3-axis stabilization. It supports multi pseudo-color switching, area and point temperature measurement, Ethernet (standard RTSP stream) video output, local TF card storage. Our ground control software allows you to control the PTZ and the thermal imaging camera at the same time. You would also be able to control the gimbal camera and read parameters through UART or UDP. We also provide multiple serial control protocols.

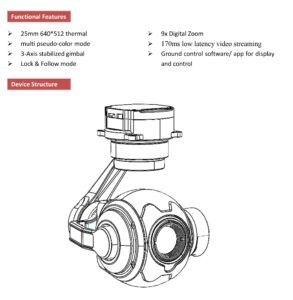

Key Highlights:
- 25mm lens with 640×512 IR resolution (8–14μm wavelength)
- 3-axis stabilization (Roll/Pitch/Yaw) + Lock/Follow Mode
- Area/point temperature measurement (-20°C to 550°C)

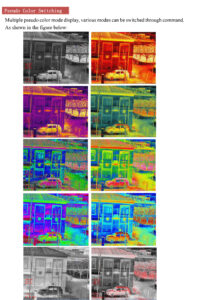

- 9x digital zoom & multi pseudo-color modes
- Low-latency 170ms RTSP video output + TF card storage

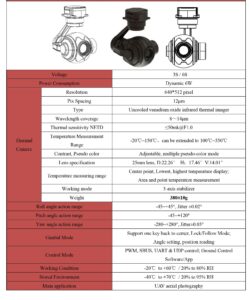

Technical Specifications
- Sensor: Uncooled vanadium oxide (NETD <50mK)
- Power: 3S–6S LiPo (6W dynamic consumption)

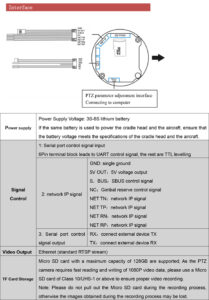

- Control Interfaces: UART, UDP, PWM, SBUS
- Video Output: Ethernet (RTSP), Micro SD (128GB, Class 10+)
Applications
“Ideal for Defense, Inspection, and Emergency Response Drones”
- Firefighting & search/rescue thermal mapping
- Power line/pipeline inspections
- Surveillance & border patrol
Why Choose MG640G25?
- Integrated Control: Compatible with GCS software for PTZ/temp adjustment.
- Precision: ±0.02° stabilization jitter for clear imagery.
- Scalable: Supports PWM/SBUS/UART protocols for diverse UAV platforms.
FAQs
- “Can this gimbal work with hybrid VTOL drones?”
Yes, compatible with all UAV types (fixed-wing, rotary, VTOL). - “How to access temperature data remotely?”
Via UART/UDP protocols or ground control software.
