Core Product Sections
- Heavy-Duty Performance Specifications
Technical superiority for distributor sales decks:- Flight Time: 4.3-hour endurance | Payload Capacity: 5kg
- Cruising Speed: 26m/s (93.6 km/h) | MTOW: 24kg
- Wheelbase: 3200mm | Airframe Weight: 6.5kg

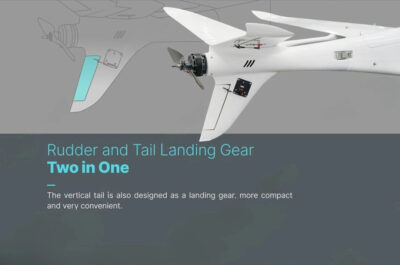

- V-Tail Landing Gear™: Compact Design, Superior Stability

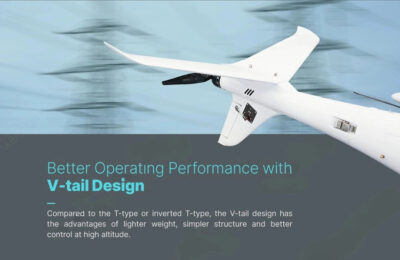

Engineering breakthrough as key USP:- Dual-Function Vertical Tail: Combines rudder + landing gear for 30% weight reduction vs. conventional T-tails.
- High-Altitude Control: Enhanced maneuverability in turbulent/remote environments.
- Field-Ready Deployment: Collapsible design for transport in standard vehicle trunks.
- 5kg Payload Integration System
Flexibility for high-value sensor systems:- Multi-Sensor Bay: Compatible with LiDAR, thermal cameras, gas detectors.
- Dynamic CG Management: Auto-balancing tech for uneven payloads.
- Quick-Swap Mounts: Tool-free sensor changes (<5 mins).
Application Focus
- Critical Infrastructure Inspection Solutions
High-ROI scenarios for distributors:- Energy Sector: Power line corridor scans, pipeline integrity monitoring, wind turbine inspection.
- Transport Networks: Railway track assessment, bridge/tunnel structural analysis.
- Industrial Security: Perimeter surveillance, disaster zone assessment (chemical/fire).
- Environmental & Security Operations
Distributor expansion opportunities:- Forest/Wildlife Protection: Illegal logging detection, fire risk mapping.
- Border Patrol: Long-range intrusion monitoring (night vision/LRF compatible).
- Smart City Deployment: Traffic flow analysis, crowd management sensors.
Technical Innovation Sections
- Endurance Engineering
Addressing top operational barriers:- Advanced aerodynamics for 18% longer flight vs. industry average.
- Power systems optimized for sensor-heavy payload conditions.
Packing List for Different Versions:
| Version | CUAV V5+ RTF | Cube Orange RTF | CUAV X7+ RTF |
|---|---|---|---|
| Flight Controller | CUAV V5+ | Cube Orange | CUAV X7+ |
| GPS | NEO3 GNSS | Here 3 GNSS | NEO3 Pro GNSS |
| VTOL Airframe | √ | √ | √ |
| VTOL Motor | 4pcs | 4pcs | 4pcs |
| VTOL ESC | 4pcs | 4pcs | 4pcs |
| Airplane Motor | 1pc | 1pc | 1pc |
| Airplane ESC | 1pc | 1pc | 1pc |
| VTOL Propeller | 2Pairs | 2Pairs | 2Pairs |
| Airplane Propeller | 1pc | 1pc | 1pc |
| Servo | 4pcs | 4pcs | 4pcs |
| UBEC | 1pc | 1pc | 1pc |
| Night Light | 1pc | 1pc | 1pc |
| RC&Ground Station | 1x FT24 14Channels RC | 1x M15 Mini HD handheld ground station | 1x M15 Mini HD handheld ground station |
| Video Transmitter | / | / | / |
| Battery | / | / | / |
| Battery Charger | / | / | / |
| Flight Case | √ | √ | √ |
| Assembling, tuning and flight test service | √ | √ | √ |
Specification:
| Model No. | China Moneypro M320 |
|---|---|
| Type | VTOL Fixed Wing |
| Color | White |

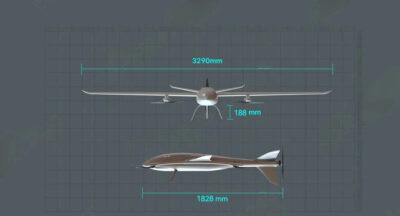

| Wingspan | 3290mm |
| Length | 1828mm |
| Belly to Ground | 188mm |
| Battery Cabin | 300*200*140mm |
| Material | Carbon fiber + glass fiber + Kevlar + PVC |
| Airframe Weight | 6.45kg |
| MTOW | 24kg |
| Max Payload | 5kg |
| Suggested Load | 1.2kg |
| Flight Time | 228min with 1.2kg payload |
| Max Cruising Speed | 26m/s |
| Stall Speed | 17m/s |
| Max Flight Altitude | 4500m |
| Max Wind Resistance Level | 12m/s |
| Battery (Recommended) | 4 * 6S 30000mAH HED Li-ion |
| Working Temperature | -20℃~60℃ |
| IP Grade | IP45 |

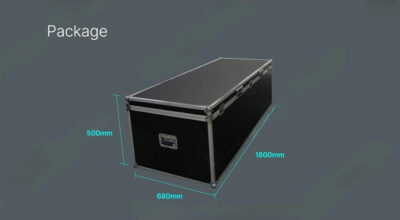

| Package Chargeable Size | 1800*680*500mm(Contains the wheel) |
| Package weight | 45kg |
