Military-Grade Portable Powerhouse
Compact 427mm Wheelbase | Tool-Free Arms | 896g Travel-Ready
- Industry-Leading Portability: 30×26×11cm rugged case fits in backpacks
- Under-1kg Airframe: Ideal for rooftop/confined-space operations
- 5-Minute Setup: Clip-in arm locks + auto-calibration
High-Efficiency Payload Mastery
| Payload | Flight Time | Critical Use Case |
|---|---|---|
| 0kg | 30 min | Extended terrain mapping |
| 1.5kg | 11 min | Medical sample transport |
| 3kg Max | 7 min | Emergency sensor deployment |
| Altitude Dominance: Stable flight at 4000m for mountain SAR/mining |
Unrivaled Range & Speed
1. Distance Efficiency
- 20km Maximum Range: Far-surpasses urban drone limits
- 19m/s Cruise Speed (+68km/h): Rapid site coverage
- Low-Power Flight Modes: Extends battery by 35%
2. Group Mission Intelligence
- Multi-Drone Control: Single remote manages 5+ units
- Coordinated Flight Paths: Automated grid surveys/crowd monitoring
- Payload Distribution: Shared 3kg capacity across drone fleet
Ultra-Compact Deployment
| Component | Portability Advantage |
|---|---|
| Quick-Release Arms | Tool-free swap in <10 seconds |
| Foldable Props | 10-inch blades fit flat in case |
| Battery System | Hot-swap packs for continuous ops |
| From Case to Flight: <90 seconds—fastest in its class |
Application Scenarios
Precision Mapping
- Topographic scans at 4000m altitude
- 2cm accuracy photogrammetry with LiDAR payload
Emergency Logistics
- Medicine delivery to high-rise/slope zones
- 3kg firestarter pods for wildfire containment
Multi-Drone Recon
- Coordinated search grids via single controller
- Bridge/pipeline inspections in hazardous terrain

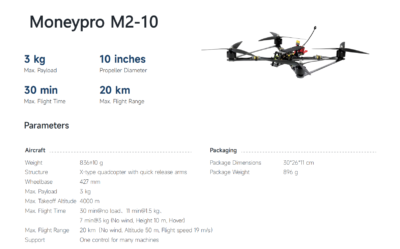

Technical Specifications
| Parameter | Specification |
|---|---|
| Wheelbase | 427mm X-type frame |
| Max Takeoff Weight | 3836g (airframe + max payload) |
| Environmental Tolerance | -10°C to +60°C operational |
| Wind Resistance | Level 5 (15m/s gusts) |
Competitive Advantage
| Capability | Moneypro M2-10 | DJI Mavic 3 Enterprise |
|---|---|---|
| Max Payload | 3kg | 1.5kg |
| Max Range | 20km | 15km |
| Setup Speed | <90 seconds | 150 seconds |
| Multi-Drone Ctrl | Yes | No |
